Fluke 77 IV EUR Digital Multimeter

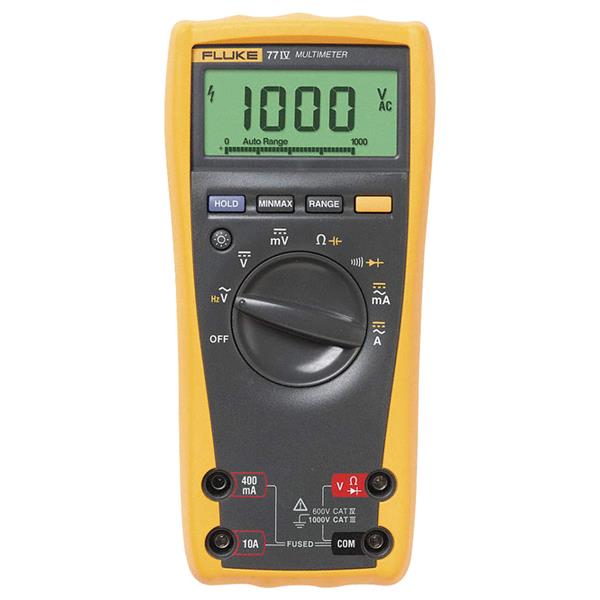

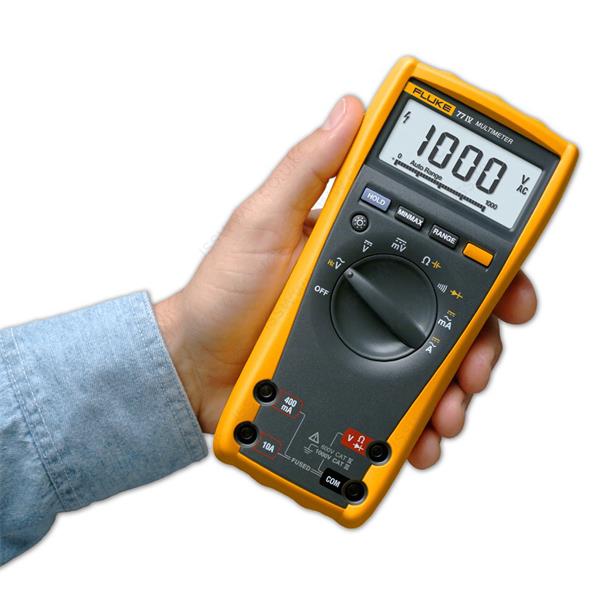

FLUKE 77 IV EUR Digital Multimeter

€793.35 Inc. VAT

Code 011225

Add to Basket

Product Details

Fluke 77 IV EUR Digital Multimeter

The Fluke 77 IV digital multimeter has the features needed to repair most electrical and electronic problems. This meter is simple to use and has significant improvements over Fluke's original 70 Series with more measurement functions, conformance to the latest safety standards, and a much larger display that's easier to view.

Features:

Large display
Backlight for work in dim areas
Minimum, Maximum to record signal fluctuations
Ergonomic over-molded housing with integrated probe holders
Free your hands with the optional TPAK magnetic hanger
Auto and Manual ranging
Meets Measurement Category 1000 V CAT III and Category IV 600 V safety standards

Includes:

9-volt Battery
Test Leads
User Manual

Delivery Info

Please allow 1 - 2 Business Days for Delivery

Free delivery on all orders over €49.99 + VAT, Click here for more information

Returns Policy

Easy Returns via Store, Post or Courier

Caulfield Industrial are happy to accept items returned to us within 28 days of purchase and in this case we offer you an exchange or a full refund once we receive the items and process them in our warehouse. Any returns which fall outside this 28 day time period may be considered on a case-by-case basis and is at the discretion of Caulfields and may be refunded as a credit against a future purchase. All items must be returned to Caulfields in the same condition in which they were shipped and in a saleable condition. Caulfield Industrial reserves the right to refuse a return if it is determined that the item has been used or worn and then returned for any reason other than being ‘faulty’.

Downloads

77 IV.PDF (685 KB)

Back to results page

Click to view complete product details

Description

Battery Type	Alkaline
Battery Life	400 hours
Maximum Voltage Between Any Terminal and Earth Ground	1000 volt
Temperature	Operating	-10 to 50 degree Celsius
Temperature	Storage	-40 to 60 degree Celsius
Temperature Coefficient	0.1 x (Specified Accuracy / degree Celsius (< 18 or > 28 degree Celsius)
Altitude	Operating	2000 metre
Altitude	Storage	12000 metre
Surge Protection	8 kV peak per IEC 61010
O Fuse for mA Inputs	440 mA, 1000 volt Fast Fuse
O Fuse for Amps Inputs	11 Amps, 1000 volt Fast Fuse
Display	Digital	6000 counts, updates 4 per seconds
	Bar Graph	33 segments, updates 32 per seconds
	Frequency	10000 counts
	Capacitance	1000 counts
DC Voltage	Range	6.000 – 1000 volt
	Best Accuracy	±(0.3 percent + 1)
	Best Resolution	0.1 mV
AC Voltage	Range	600.0 mV – 1000 volt
	Best Accuracy	±(2.0 percent + 2)
	Best Resolution	1.0 mV
AC Amps	Range	60.00 mA – 10 Amps
	Best Accuracy	2.5 percent + 2
	Best Resolution	0.01 mA
DC Amps	Range	60.00 mA – 10 Amps
	Best Accuracy	1.5 percent + 2
	Best Resolution	0.01 mA
Resistance	Range	600.0 O – 50 MO
	Best Accuracy	±(0.5 percent + 1)
	Best Resolution	0.1 O
Capacitance	Range	1nF – 9,999 µF
	Best Accuracy	±(1.2 percent + 2)
	Best Resolution	1 nF
Frequency	Range	99.99 Hz – 99.99 kHz
	Best Accuracy	±(0.1 percent + 1)
	Best Resolution	0.01 Hz
Size	43 x 90 x 185 mm
Weight	0.42 kg
