Fluke 3000 FC Wireless General Maintenance Kit

FLUKE 3000 FC Wireless General Maintenance Kit

€870.91 Ex. VAT

Code K10157

Add to Basket

Specifications

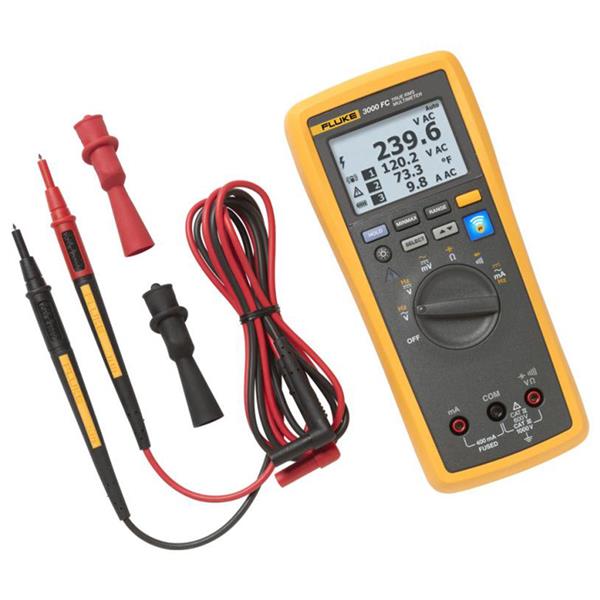

Fluke 3000 FC Wireless General Maintenance Kit

The Fluke FC Wireless General Maintenance System lets you work on electrical panels faster, safer, easier. Connect the FC Wireless iFlex AC Current Module to your test point, and view the results up to 20 metre away on the FC Wireless Digital Multimeter. Or connect the FC Wireless AC Voltage Module and view both voltage and current measurements simultaneously. From short distances, you can even view readings from modules through closed electrical panels. Plus no more writing down data as the Fluke Connect remote modules capture up to 65000 sets of time-stamped Minimum, Maximum and Average readings, using the optional PC adapter. Fluke Connect wireless test tools also offer increased safety by letting you view readings in a separate location from the test point.

Features:

True-RMS AC voltage and current for accurate measurements on non-linear loads
Large digit display with analog bar graph
Display backlight for work in dark areas
Records minimum and maximum values to aid in troubleshooting
Free your hands with the magnetic hanger included in this combo kit

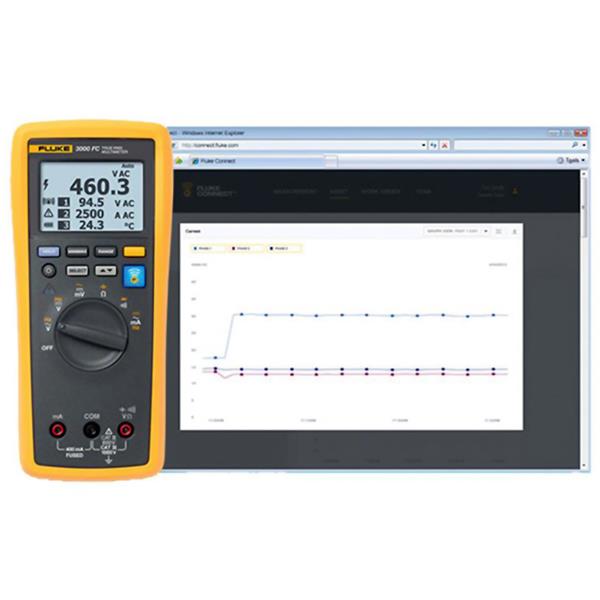

Add your laptop and go from logging to analysis and diagnosis
Record over time using the Fluke Connect wireless modules and monitor circuit load changes for an hour, a shift or a week
Use the Fluke Connect wireless USB adapter to collect logged data from remote modules by walking past a working module and downloading logged data
Perform for analysis with your PC and share the results using Fluke Cloud storage and ShareLive video call

Click here for more Product Information

Delivery Info

Please allow 1 - 2 Business Days for Delivery

Free delivery on all orders over €49.99 + VAT, Click here for more information

Returns Policy

Easy Returns via Store, Post or Courier

Caulfield Industrial are happy to accept items returned to us within 28 days of purchase and in this case we offer you an exchange or a full refund once we receive the items and process them in our warehouse. Any returns which fall outside this 28 day time period may be considered on a case-by-case basis and is at the discretion of Caulfields and may be refunded as a credit against a future purchase. All items must be returned to Caulfields in the same condition in which they were shipped and in a saleable condition. Caulfield Industrial reserves the right to refuse a return if it is determined that the item has been used or worn and then returned for any reason other than being ‘faulty’.

Downloads

3000 FC.PDF (2 MB)

Back to results page

Click to view complete product details

Specifications:

Battery Type	AA
Battery Life	250 hours
Temperature	Operating Temperature	-10 to 50 degree Celsius
Temperature	Storage Temperature	-40 to 60 degree Celsius
Temperature Co-efficient	0.1 X (specified accuracy)/degree Celsius (< 18 degree Celsius or > 28 degree Celsius)
Relative Humidity	0 percent to 90 percent (0 to 35 degree Celsius) 0 to 75 percent (35 to 40 degree Celsius) 0 to 45 percent (40 to 50degree Celsius)
Altitude	Operating	2000 metre
Altitude	Storage	12000 metre
Maximum Voltage Between Any Terminal and Earth Ground	1000 V DC or AC RMS
O Fuse Protection From A Inputs	0.44 Amps (44/100 Amps, 440 mA), 1000 volt FAST Fuse, Fluke specified part only
Display (LCD)	Update rate	4 per seconds
	Volts, amps, ohms	6000 counts
	Frequency	10000 counts
Capacitance	1000 counts
minimum/Maximum Recording Accuracy
DC Functions	± 12 counts for changes > 350 mS in duration
AC Functions	± 40 counts for changes > 900 mS in duration
Input Characteristics
	Overload Protection	1100 volt RMS
	Input Impedance (nominal)	> 10 MO < 100 pF
	Common Mode Rejection Ratio (1 kO unbalance)	> 120 dB at DC, 50 Hz or 60 Hz
	Normal Mode Rejection	> 60 dB at 50 Hz or 60 Hz
	Overload Protection	1100 volt RMS
Input Impedance (Nominal)	> 10 MO < 100 pF
Common Mode Rejection Ratio (1 kO unbalance)	> 60 dB, DC to 60 Hz
Normal Mode Rejection	> 60 dB at 50 Hz or 60 Hz
	Overload Protection	1100 volt RMS
	Input Impedance (nominal)	> 10 MO < 100 pF
	Common Mode Rejection Ratio (1 kO unbalance)	> 120 dB at DC, 50 Hz or 60 Hz
	Normal Mode Rejection	> 60 dB at 50 Hz or 60 Hz
Open Circuit Test Voltage
	Overload Protection	1100 volt RMS
	Input Impedance (nominal)	< 2.7 volt DC
	Full Scale Voltage to 6 MO Full Scale Voltage 50 MO	< 0.7 volt DC < 0.9 volt DC
	Typical Short Circuit Current	< 350 mA
	Overload Protection	1100 volt RMS
	Input Impedance (nominal)	< 2.7 volt DC
	Full Scale Voltage to 6 MO Full Scale Voltage 50 MO	2.000 volt DC
	Typical Short Circuit Current	< 1.1 mA
AC Voltage
Range/Resolution		600.0/0.1 mV 6.000/0.001 volt 60.00/0.01 volt 600.0/ 0.1 volt 1000/1 volt
Accuracy	45 Hz to 500 Hz	1.0 percent + 3
Accuracy	500 Hz to 1 kHz	2.0 percent + 3
DC Voltage, Continuity, Resistance, Diode Test and Capacitance
mV	Range/Resolution	600.0/0.1 mV
mV	Accuracy	0.09 percent + 2
V	Range/Resolution	6.000/ 0.001 volt 60.00/0.01 volt 600.0/0.1 volt 1000/ 1 volt
V	Accuracy	0.09 percent + 2 0.15 percent + 2
)))	Range/Resolution	600/1 O
)))	Accuracy	Meter beeps at < 25 O, beeper detects opens or shorts of 250 µs or longer
O	Range/Resolution	600.0/0.1 O 6.000/0.001 kO 60.00/0.01 kO 60.00/0.1 kO 600.0/0.001 MO 50.00/0.01 MO
O	Accuracy	0.5 percent + 2 0.5 percent + 1 1.5 percent + 3
Diode test	Range/Resolution	2.000/0.001 volt
Diode test	Accuracy	1 percent + 2
µF	Range/Resolution	1000/1 nF 10.00/0.01 µF 100.0/0.1 µF 9999 µF^{1 /}1 µF
µF	Accuracy	1.2 percent + 2 10 percent typical
AC and DC Current
mA AC (45 Hz to 1 kHz)	Range/Resolution	60.00/0.01 mA 400.0 mA³/ 0.1 mA
mA AC (45 Hz to 1 kHz)	Accuracy	1.5 percent + 3
mA DC	Range/Resolution	60.00/0.01 mA 400.0/0.1 mA
mA DC	Accuracy	0.5 percent + 3
Frequency
Range/Resolution	99.99/0.01 Hz 999.9/0.1 Hz 9.999/0.001 kHz 99.99/0.01 kHz
Accuracy	0.1 percent + 1
Size	47.5 x 93 x 207 mm
Weight	340 g

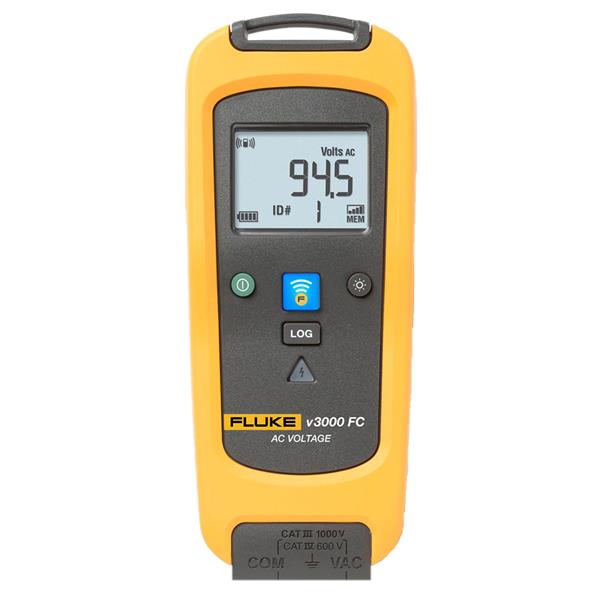

v3000 FC Wireless Voltage Module Features:

Take 3-phase measurements in 1/3 the time of previous methods
Send data to your laptop and go from logging to analysis and diagnosis
Record over time to monitor circuit load changes for an hour, a shift or a week
Use the Fluke Connect wireless USB adapter to collect logged data from remote modules by walking past a working module and downloading logged data
Perform for analysis with your PC and share the results using Fluke Cloud storage and ShareLive video call
View data or graphs to get input from team members
Use as a standalone meter or as part of the system
Use the logging function for recording and saving up to 65000 readings

v3000 FC Wireless Voltage Module Features:

Battery Type	AA
Battery Life	400 hours
Operating Temperature	-10 to 50 degree Celsius
Storage Temperature	-40 to 60 degree Celsius
Temperature Coefficient	0.1 x (specified accuracy)/ degree Celsius (< 18 degree Celsius or > 28 degree Celsius)
Operating Humidity	90 percent at 35 degree Celsius, 45 percent at 40 degree Celsius, 45 percent at 50 degree Celsius
Altitude	Operating	2000 metre
	Storage	12000 metre
Pollution Degree	2
Memory	Record up to 65000 readings
RF Communications	2.4 GHZ ISM Band
RF Communication Range	Open Air, unobstructed	Up to 20 metre
	Obstructed, Sheetrock Wall	Up to 6.5 metre
	Obstructed, Concrete Wall or Steel Electrical Enclosure	Up to 3.5 metre
LCD with Backlight	3½ digits, 6000 counts, updates 4 per seconds
Range/Resolution	6.000/0.001 volt 60.00/0.01 volt 600.0/0.1 volt 1000/1 volt
Accuracy	45 to 500 Hz	1.0 percent + 3
	500 Hz to 1 kHz	2.0 percent + 3
Size	165 x 63.5 x 14 mm
Weight	0.22 kg

v3001 FC Wireless DC Voltage Module Features:

Fluke Connect Wireless Test Tools put tools, not your body, near live electrical panels
Fluke Connect test tools can send measurement data to your smartphone
You can then download the data for further analysis
Fluke Connect, there's no need to work in front of live open panels or moving/hazardous machinery
Picture having the ability to access live readings without being exposed to the live panel
Use as a standalone meter or as part of the system
Use the logging function for recording and saving up to 65000 readings

v3001 FC Wireless DC Voltage Module Specifications:

Battery Type	AA
Battery Life	400 hours
LCD with Backlight	3 ½ Digits, 6000 counts, 4 per seconds update rate
Log Rate/Interval	Adjustable by PC from 1 second to 1 hour, default 1 minute
Memory	Record up to 65000 readings
RF Communications	2.4 GHz ISM Band
RF Communication Range	Open Air, Unobstructed	Up to 20 metre
	Obstructed, Sheetrock Wall	Up to 6.5 metre
	Obstructed, Concrete Wall or Steel Electrical Enclosure	Up to 3.5 metre
Operating Temperature	-10 to 50 degree Celsius
Storage Temperature	-40 to 60 degree Celsius
Temperature Coefficient	0.1 x (specified accuracy)/ degree Celsius (< 18 degree Celsius or > 28 degree Celsius)
Relative Humidity	0 to 90 percent (0 to 35 degree Celsius), 0 to 75 degree Celsius (35 to 40 degree Celsius), 0 to 45 percent (40 to 50 degree Celsius)
Size	160 x 66 x 38 mm
Weight	0.255 kg

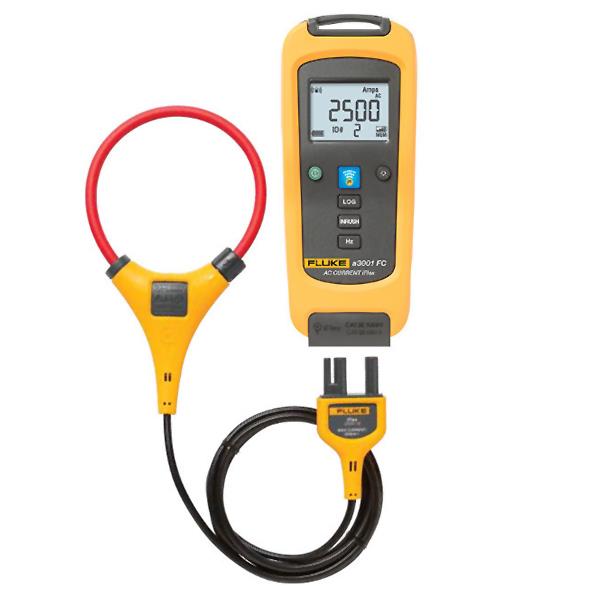

a3001 FC Wireless AC Current Module Features:

Take 3-phase measurements in 1/3 the time of previous methods
Send data to your laptop and go from logging to analysis and diagnosis
Record over time to monitor circuit load changes for an hour, a shift or a week
Use the Fluke Connect wireless USB adapter to collect logged data from remote modules by walking past a working module and downloading logged data
Perform for analysis with your PC and share the results using Fluke Cloud storage and ShareLive video call
View data or graphs to get input from team members
Use as a standalone meter or as part of the system
Use the logging function for recording and saving up to 65000 readings

a3001 FC Wireless AC Current Module Specifications:

Battery Type	AA
Battery life	400 hours
Memory	Record up to 65000 readings
RF Communications	2.4 GHZ ISM Band
RF Communication Range	Open Air, Unobstructed	Up to 20 metre
	Obstructed, Sheetrock Wall	Up to 6.5 metre
	Obstructed, Concrete Wall or Steel Electrical Enclosure	Up to 3.5 metre
Operating Temperature	-10 to 50 degree Celsius
Storage Temperature	-40 to 60 degree Celsius
Temperature Coefficient	Add 0.1 x (specified accuracy) /degree Celsius (< 18 degree Celsius or > 28 degree Celsius)
Operating Humidity	90 percent at 35 degree Celsius 75 percent at 40 degree Celsius 45 percent at 50 degree Celsius
Altitude	Operating	2000 metre
	Storage	12000 metre
Pollution Degree	2
Jaw Opening	254 mm Coil
Range	0.5 to 2500 Amps AC
Resolution	0.1 Amps
Accuracy	3 percent ±5 digits (5 to 500 Hz)
Crest Factor (50/60 Hz)	3.0 at 1100 Amps 2.5 at 1400 Amps 1.42 at 2500 Amps add 2 percent for Celsius.Fahrenheit. > 2
Size	165 x 63.5 x 14 mm
Weight	0.22 kg

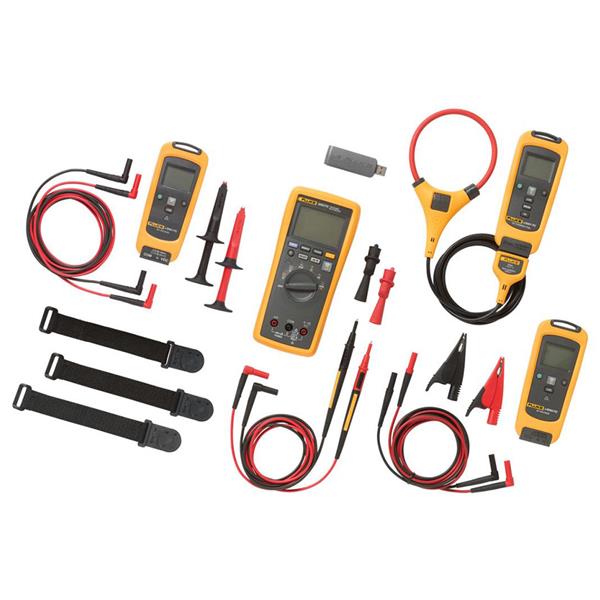

Kit Contents:

Fluke 3000 FC Series Wireless Multimeter
Fluke v3000 Voltage Module
Fluke v3001 Voltage Module
Fluke a3001 FC Wireless iFlex AC Current Module
TL224 Test Leads
TL222 Test Leads
TL175 Test Leads
AC285 Alligator Clips
AC220 Alligator Clips
AC175 Alligator Clips
iFlex i2500-10 Flexible Current Probe
Magnetic Hanging Strap
