FLUKE 177 True-RMS Digital Multimeter

€434.00 Ex. VAT

Code C11011

Add to Basket

Product Details

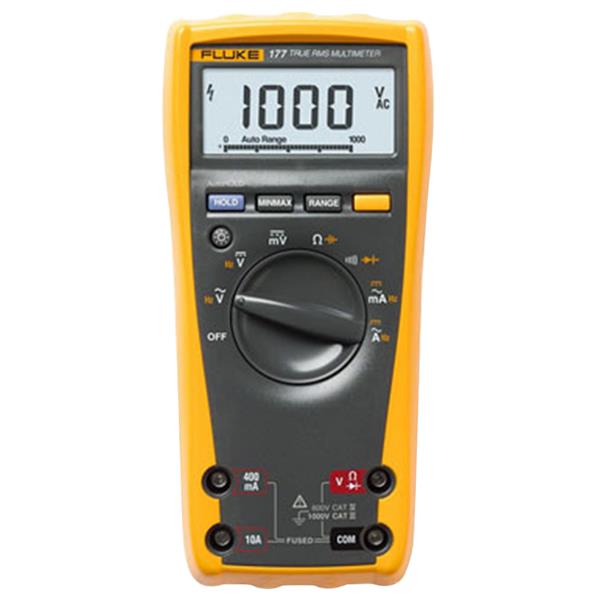

Fluke 177 True-RMS Digital Multimeter

Fluke 177 Digital Multimeter is the preferred solution for professional technicians worldwide. Independently tested for safe use in CAT IV 600 V/CAT III 1000 V environments, the Fluke 177 Includes all the features you need to troubleshoot and repair many problems in electrical and electronic systems. With the Fluke 177 Digital Multimeter, you get True-RMS voltage and current measurements, 6000-count resolution, manual and automatic ranging, and frequency, capacitance, resistance, continuity, and diode measurements. In addition, the Fluke 177 provides 0.09 percent basic accuracy, a digital display with analog bar graph and backlight.

Features:

Fast, reliable measurements of all basic electrical parameters
Ideal for any technician diagnosing and fixing problems with electrical and electronic equipment
Both manual and automatic ranging options
True-RMS-ensures accuracy is maintained when testing AC
Display hold and auto hold functions
Record the minimum, maximum and average readings taken over a period of time
Closed case calibration through front panel
Ergonomic case with integrated protective holsters

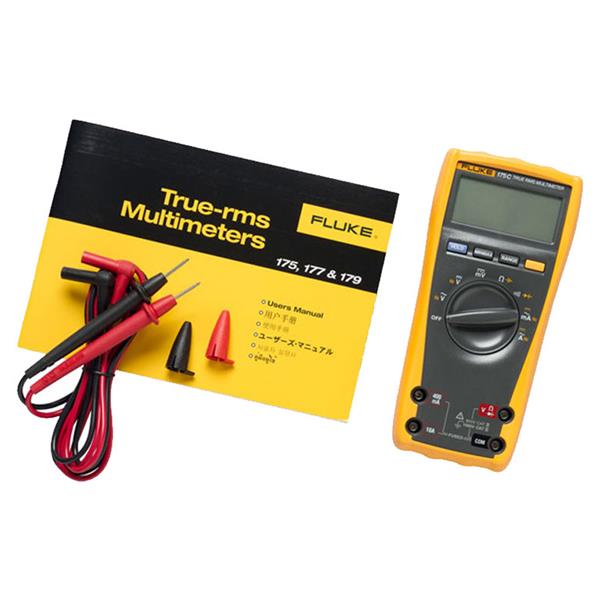

Includes:

9-volt Batteries
Test Leads
User Manual

Delivery Info

Please allow 1 - 2 Business Days for Delivery

Free delivery on all orders over €49.99 + VAT, Click here for more information

Returns Policy

Easy Returns via Store, Post or Courier

Caulfield Industrial are happy to accept items returned to us within 28 days of purchase and in this case we offer you an exchange or a full refund once we receive the items and process them in our warehouse. Any returns which fall outside this 28 day time period may be considered on a case-by-case basis and is at the discretion of Caulfields and may be refunded as a credit against a future purchase. All items must be returned to Caulfields in the same condition in which they were shipped and in a saleable condition. Caulfield Industrial reserves the right to refuse a return if it is determined that the item has been used or worn and then returned for any reason other than being ‘faulty’.

Downloads

177.pdf (993 KB)

Back to results page

Click to view complete product details

Description

Specifications:

Battery Type	AA
Operating Temperature	-10 to 50 degree Celsius
Storage Temperature	-30 to 60 degree Celsius
Humidity (Without Condensation)	0-90 percent (0 to 3 degree Celsius) 0-70 percent (35 to 50 degree Celsius)
DC Voltage	Accuracy	±(0.09 percent + 2)
	Maximum Resolution	0.1 mV
	Maximum Range	1000 volt
AC Voltage	Accuracy	±(1.0 percent + 3)
	Maximum Resolution	0.1 mV
	Maximum Range	1000 volt
DC Current	Accuracy	±(1.0 percent + 3)
	Maximum Resolution	0.01 mA
	Maximum range	10 Amps
AC Current	Accuracy	±(1.5 percent + 3)
	Maximum Resolution	0.01 mA
	Maximum Range	10 Amps
Resistance	Accuracy	±(0.9 percent + 1)
	Maximum Resolution	0.1 O
	Maximum Range	50 MO
Capacitance	Accuracy	±(1.2 percent + 2)
	Maximum Resolution	1 nF
	Maximum Range	10000 µF
Frequency	Accuracy	±(0.1 percent + 1)
	Maximum Resolution	0.01 Hz
	Maximum Range	100 kHz
Size	43 x 90 x 185 mm
Weight	0.42 kg
