FLUKE 287 True-RMS Electronics Logging Multimeter

€897.00 Ex. VAT

Code C11004

Add to Basket

Product Details

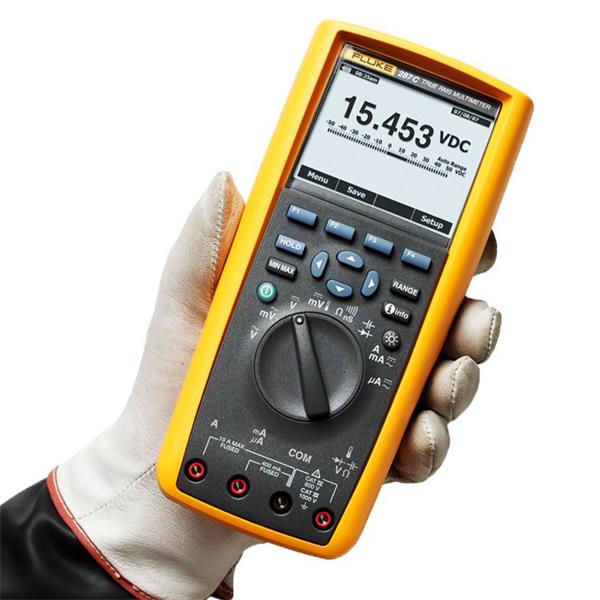

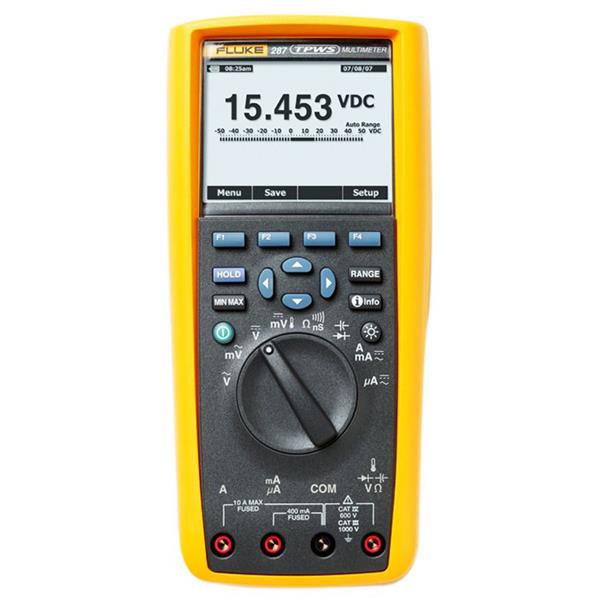

Fluke 287 True-RMS Electronics Logging Multimeter

The Fluke 287 True-RMS Electronics Logging Multimeter with Trend Capture quickly documents design performance and graphically displays what happened. It's unique logging and graphing capabilities mean you no longer need to download logged readings to a PC to detect a trend. The Fluke 287 packs more accuracy and convenience into a handheld multimeter than ever before.

Features:

Let your team see what you see in an instant with ShareLive video call (requires Fluke Connect mobile app and ir3000 FC wireless connector)
Trend Capture quickly graphically displays logged data session to quickly determine whether anomalies may have occurred
Zoom on trend provides unprecedented ability to view and analyze Trend Capture data zoom in up to 14 times
Selectable AC filter (smoothing mode) helps display a steadier reading when the input signal is changing rapidly or noisy
Adjustable recording and auto hold thresholds, specify a percentage change in the readings that begin a new event
Multiple sets of measurement information can be simultaneously displayed at the same time
Logging function with expanded memory for unattended monitoring of signals over time
Using onboard Trend Capture users can graphically review logged readings without needing a PC
Onboard help screens for measurement functions
Saved measurements allow you to name and recall measurements made in the field
Multiple logging sessions possible without download
Real-time clock for automatic time stamping of saved readings
Relative mode to remove test lead resistance from low ohms or capacitance measurements
Premium test leads and alligator clips included
Optional magnetic hanger allows you to hang the meter for easy viewing while freeing your hands to focus on the job

Includes:

6 x AA Batteries
Test Leads
Alligator Clips

Delivery Info

Please allow 1 - 2 Business Days for Delivery

Free delivery on all orders over €49.99 + VAT, Click here for more information

Returns Policy

Easy Returns via Store, Post or Courier

Caulfield Industrial are happy to accept items returned to us within 28 days of purchase and in this case we offer you an exchange or a full refund once we receive the items and process them in our warehouse. Any returns which fall outside this 28 day time period may be considered on a case-by-case basis and is at the discretion of Caulfields and may be refunded as a credit against a future purchase. All items must be returned to Caulfields in the same condition in which they were shipped and in a saleable condition. Caulfield Industrial reserves the right to refuse a return if it is determined that the item has been used or worn and then returned for any reason other than being ‘faulty’.

Back to results page

Click to view complete product details

Description

Specifications:

Battery Type	AA Alkaline
Battery Life	100 hours minimum, 200 hours in logging mode
Temperature	Operating	-20 to 55 degree Celsius
Temperature	Storage	-40 to 60 degree Celsius
Relative Humidity	0 to 90 percent (0 t0 37 degree Celsius), 0 to 65 percent (37 to 45 degree Celsius), 0 to 45 percent (45 to 55 degree Celsius)
True-RMS AC Bandwidth	100 kHz
DC mV Resolution	1 µV
Megohm Range	Up to 500 MO
Conductance	50.00 nS
Peak	250 µs
Duty Cycle	0.01 to 99.99 percent
Pulse Width	0.025 ms, 0.25 ms, 2.5 ms, 1250.0 ms
Logging Memory	Up to 10000 Readings
Maximum Voltage Between Any Terminal and Earth Ground	1000 volt
DC Volts	Range/Resolution	50.000 mV, 500.00 mV, 5.0000, 50.000, 500.00, 1000.0 volt
DC Volts	Basic Accuracy	0.025 percent
AC Volts	Range/Resolution	50.000 mV, 500.00 mV, 5.0000, 50.000, 500.00, 1000.0 volt
AC Volts	Basic Accuracy	0.4 percent (True-RMS)
DC Current	Range/Resolution	500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000, 10.000 Amps
DC Current	Basic Accuracy	0.05 percent
AC Current	Range/Resolution	500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000, 10.000 Amps
AC Current	Basic Accuracy	0.6 percent (True-RMS)
Temperature (Excluding Probe)	Range/Resolution	-200 to 1350 degree Celsius
Temperature (Excluding Probe)	Basic Accuracy	1.0 percent
Resistance	Range/Resolution	500.00 O, 5.0000, 50.000, 500.00 kO, 5.0000, 50.00, 500.0 MO
Resistance	Basic Accuracy	0.05 percent
Capacitance	Range/Resolution	1.000 n, 10.00, 100.0 nF, 1.000, 10.00, 100.0, 1000 µF, 10.00, 100 mF
Capacitance	Basic Accuracy	1.0 percent
Frequency	Range/Resolution	99.999, 999.99 Hz, 9.9999, 99.999, 999.99 kHz
Frequency	Basic Accuracy	0.005 percent
Connectivity	Optional infrared connector via Fluke ir3000 FC
Size	222 x 102 x 60 mm
Weight	0.87 kg
