SIP 05739 Weldmate Autoplus 180A MIG/ARC/TIG Welder

€418.70 Ex. VAT

***PLEASE ALLOW UP TO 7 WORKING DAYS FOR DELIVERY***

Code G15950


Add to Basket
Product Details

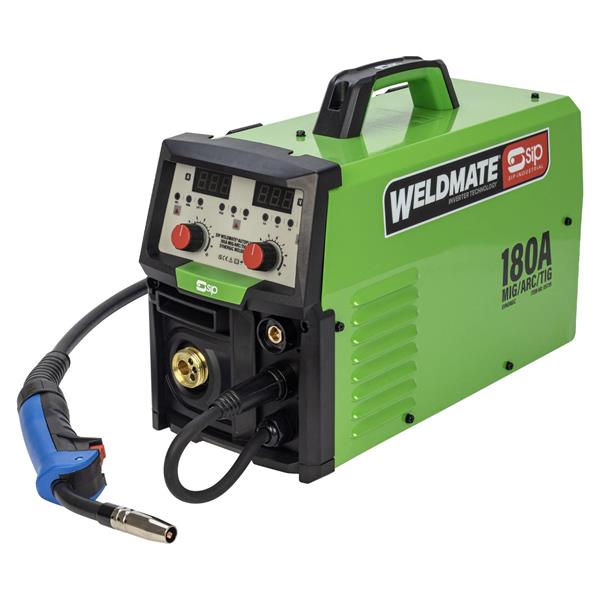

SIP 05739 Weldmate Autoplus 180A MIG/ARC/TIG Welder

The SIP WELDMATE® AUTOPLUS 180A MIG/ARC/TIG Synergic Welder is a multi-process inverter welder specifically designed for use in automotive and garage environments.

Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.

It also includes Pure Synergic Control, which allows users to adjust welding voltage and wire feed speed autonomously. This simplifies the welding process at all skill levels and helps to achieve more consistent and higher quality welds. Compatible with SIP Welding Cart & Trolley for added mobility Compatible with the 05714 SIP 3-Tier Welding Cart, suitable for gas cylinders up to 50kg.

Features:
  • Multi-process MIG/ARC/TIG welder for greater flexibility
  • Pure Synergic Control for more consistent and higher quality welds
  • Fully compliant with EU 2019/1784 (Eco Design for Welding Equipment)
  • Heavy-duty aluminium wire feeder for smooth consistent flow of wire
  • Intuitive control panel to select between process, gas and wire size
  • Metal casing with strong-grip carry handle for long life use
Includes:
  • Integrated 3mtr Euro MIG torch,
  • Electrode lead,
  • Earth lead,
  • Gas hose with cLamps,
  • Contact tips,
  • Chipping hammer/brush.

***Arc & Tig Torch Not Included***

Click here for more Product Information?

Specifications
Input Supply:230v (16A)
Welding Process:MIGARCTIG
Output Voltage:16.5v - 23v20.8v - 26.4v10.8v - 17.2v
Output Current:50A - 180A20A - 180A20A - 180A
Duty Cycle @ 40°C:180A @ 15%180A @ 15%180A @ 15%
Wire Diameter:⌀ 0.8mm - 0.9mm
Wire Spool Size:0.7kg, 5kg
Welding Material Thickness:0.8mm - 6.4mm (mild steel)
Protection / Insulation21S / H
Net Weight:11.20kg
Delivery Info

Please allow 1 - 2 Business Days for Delivery

Free delivery on all orders over €49.99 + VAT, Click here for more information

Returns Policy

Easy Returns via Store, Post or Courier

Caulfield Industrial  are happy to accept items returned to us within 28 days of purchase and in this case we offer you an exchange or a full refund once we receive the items and process them in our warehouse. Any returns which fall outside this 28 day time period may be considered on a case-by-case basis and is at the discretion of Caulfields and may be refunded as a credit against a future purchase. All items must be returned to Caulfields in the same condition in which they were shipped and in a saleable condition. Caulfield Industrial reserves the right to refuse a return if it is determined that the item has been used or worn and then returned for any reason other than being ‘faulty’.

Click to view complete product details

Multi-process MIG/ARC/TIG welder for greater flexibility at high duty cycles:
Duty cycle @ 40°C: 180A @ 15% (MIG/ARC/TIG).

Pure Synergic Control allows users to adjust welding voltage and wire speed autonomously:
This easy-to-set function simplifies the welding process at all skill levels, helping to achieve more consistent and higher quality welds.

Heavy-duty aluminium wire feeder ensures smooth and consistent flow of wire to MIG torch:
This easy-to-use device includes tension adjustment to maintain optimal performance.

Supplied with interchangeable feed rollers for solid and flux-cored wires.

Compatible with 0.7kg and 5kg welding wire spools.

Intuitive control panel to select between welding process, gas type and wire size:
Infinitely variable dials offer a smoother stepless output adjustment for higher quality and easily controlled welding.

Twin LEDs display welding output and synergic control metrics.

Metal casing with heavy-duty carry handle for long life use:
High-quality finish is resistant to work area damage and aids mobility.

Compact and portable design for mobility around the work area:
The compact unit is easy to move between locations using the fitted carry handle.

Accessories included:
Supplied with integrated 3mtr Euro MIG torch, electrode lead, earth lead, gas hose with camps, contact tips, feed rollers and chipping hammer/brush.
