SCHOTT ColdVision CV-LS LED Fiber Optic Light Source

€1,699.00 Ex. VAT

Code E09673

Product Details

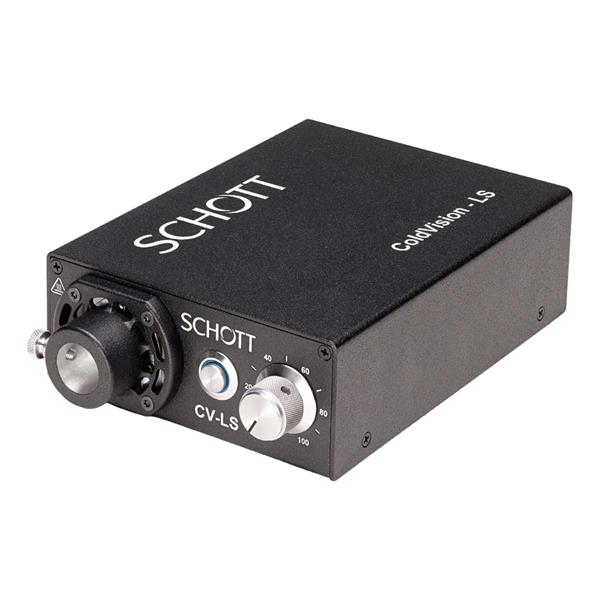

SCHOTT CV-LS Cool White Light Source

The CV-LS light source is the flagship of the SCHOTT ColdVision series, offering high efficiency output in a compact footprint with versatile connectivity. This connectivity makes it ideal for machine vision applications, while the high brightness LED light engine greatly increases light output – far beyond 150 W EJA halogen lamp levels for the Cool White model.

Features

• Internal light feedback stabilization
• Fast triggered strobe (25µs rise time, 1µs precision)
• Analog and digital remote control: USB (Virtual RS232), RS232, Dual Ethernet, Multiport-Wide range power supply according to international standards
• Cool White

• Compatible with COLDVision light guides

Specifications

• Operating Lifetime (hours): >50,000
• Dimensions (mm): 129W x 201D x 59.69H
• Output Power (Lumens): 1350
• Wavelength CCT: 6000K

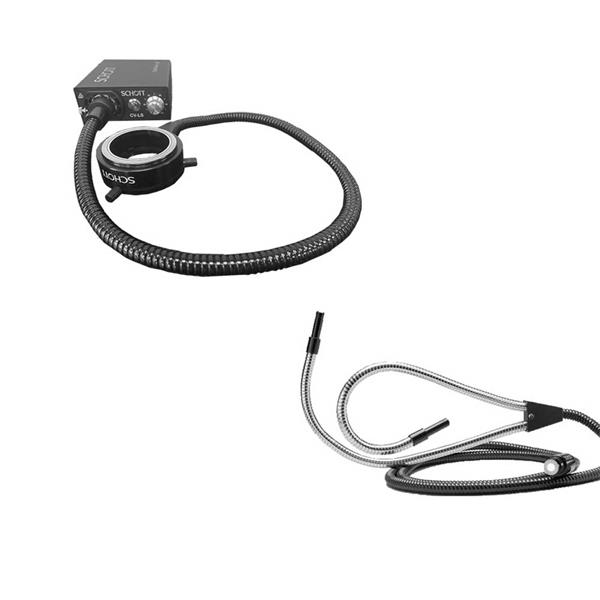

Compatible Light Guides:  See 010103, 010104 E09433 & 010212

Order Power Cord Separately: See E23252
