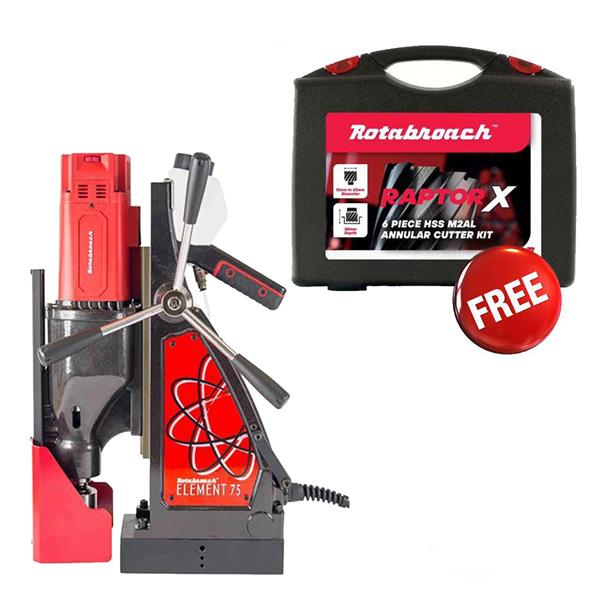

ROTABROACH ELEMENT 75 1800W 75mm Magnetic Drill, 110v

ROTABROACH ELEMENT75 1800W 75mm Magnetic Drill, 110v

Features

• For Heavy- duty operations the 'Element 75" is a must for drilling larger holes, suitable for drilling up to 75mm diameter by 75mm depth
• Compact, Durable and more portable than other larger machines
• The element 75 offers forward and reverse functionality
• Dual Motor protection system to protection system to proling the machines life and prevent unwanted wear
• Cutsmart Technology- Designed to protect your motor and cutter, prolonging tool life.
• Quick release interchangeable handle - allowing you yo operate the mag drill from either side and improving  accessibility.
• Internal cabling removed the risk of damage and downtime for your magdrill
• Internal Cooling- Keeping your mag drill cool and allowing you to drill for longer
• 13mm  Drill chuck that can be used for twist drills
• Powerful 1800w motor with a two speed mehancial gerabox


Specifications

• Motor Specification: 110V 1800W
• No Load Speed 70 -500RPM

• Max Hole Cutting Capacity: ø75 x 75mm Deep – 26mm with MT Drill
• Length 375mm
• Height 713mm
• Width 214mm
• Machine Weight: 23.5kg
• Magnetic Adhesion: 18,500N
• Magnet Size: 220mm x 114mm
• Cutter Capacity:  75mm
• Depth of Cut:  75mm
• Twist Drill Capacity: 26mm
• Drill Chuck Capacity:  16mm
• Morse Taper:  MT3
• Countersink: 40mm
• Tapping:  M24
• Magnet Adhesion:  18500N
• Magnet Size 220 x 114mm
• Weight 23KG
• Stroke 185mm

Supplied with

• Internal Coolant System
• 16mm Chuck
• Arbor Assembly– 6mm
• Hexagonal Spanner

• Safety Glasses
• Arbor Shank
• Drift
• Safety Strap
• 3mm Hexagonal Spanner
• Stationary Rings
• Pilot Pin
