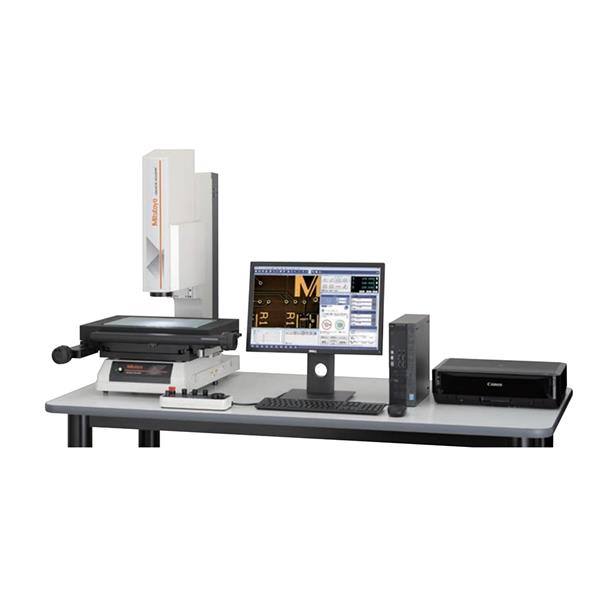

MITUTOYO QS-L2010Z/AFC Manual Vision Measuring Machine with Motorized Z-axis

MITUTOYO QS-L2010Z/AFC Manual Vision Measuring Machine with Motorized Z-axis

€32,664.00 Ex. VAT

New

MITUTOYO QS-L2010Z/AFC Manual Vision Measuring Machine with Motorized Z-axis

Code G16170

Add to Basket

Product Details

MITUTOYO QS-L2010Z/AFC Manual Vision Measuring Machine with Motorized Z-axis

Features

Drive method: X/Y axes: Manual Z axis: CNC with Auto focus
Measuring volume: 8x4x6" (200×100×150 mm) 12x6.7x6" (300×170×150 mm) 16x8x6" (400×200×150 mm)
Resolution / Scale type: 0.1 µm / Linear encoder
Accuracy *1 *2 X axis, Y axis (2.2+0.02L) µm, Z axis (4.5+0.006L) µm
Accuracy guaranteed temperature range: 20±1 ºC
Observation unit : *3 7X zoom (8 steps) interchangeable objective lenses (1X objective 0.5X - 3.5X; 1.5X objective 0.75X - 5.25X; 2X objective 1X - 7X)
Image sensor 3 Megapixel, CMOS color camera
Illumination Transmitted light - white LED, Co-axial - light white LED, Ring light - 4-quadrant ring light (LED)
Stage glass size: 10x6" (250×150 mm)
Mass (main unit): 154 lbs (70 kg)

Specifications

Dimensions (main unit, WxDxH): 24.5x28x29" (624×711×729 mm)
Maximum stage loading: 22 lbs (10 kg)

Delivery Info

Please allow 1 - 2 Business Days for Delivery

Free delivery on all orders over €75 + VAT

?View our full Delivery information >

Returns Policy

Easy Returns via Store, Post or Courier

Back to results page

Click to view complete product details
