MITUTOYO 547-300A 0-10mm Digimatic Thickness Gage

€490.00 Ex. VAT


Code Range Type No. Quantity Price Ex. VAT
F11024 0-10mm 547-300A €490.00
Add to Basket
Delivery Info

Please allow 2 - 5 Business Days for Delivery

Free delivery on all orders over €49.99 + VAT, Click here for more information

Returns Policy
Click to view complete product details

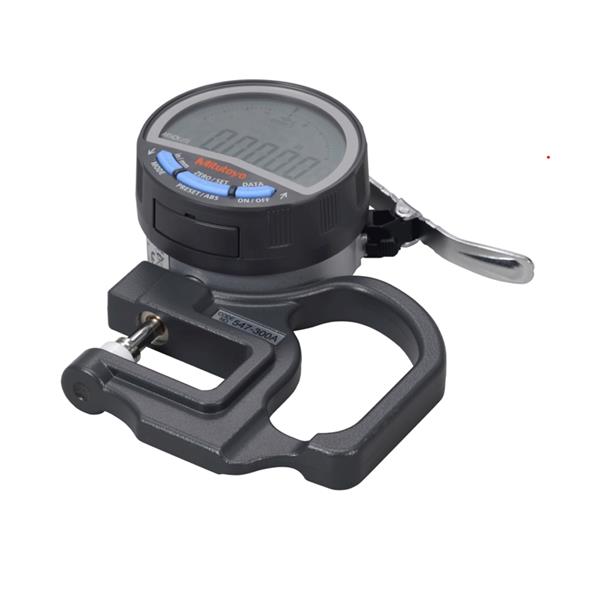

Mitutoyo 547-300A 0-10mm Digimatic Thickness Gage


The Thickness Gages offer a quick and efficient means of inspection with their convenient grip handle, thumb trigger and spring-loaded spindle. The various models cover a wide range of applications.

Features:
  • Wide range of applications with various types of measuring faces (on the spindle and anvil)
  • The digital models incorporate Mitutoyo's popular ID-C and ID-S Series Digimatic Indicators to provide error-free LCD readings as well as data output for SPC analysis
  • 547-300A is ideally suited for measuring thicknesses of paper, film, wire, sheet metal and similar materials
  • Function of Digital Models IDS Types: On/off, Inch/mm Conversion, Origin, ± Direction Changeover, SPC Output, Zero/ABS, Provides GO/±NG Judgment, Face Rotates 330 degree
  • Alarm - Low voltage, Counting value composition error, overflow error, tolerance limit setting error (ID-C only)
Specifications:
  • Range: 0-10 mm
  • Digital Step: 0.0005"/0.01 mm
  • Maximum Measuring Depth: 30 mm
  • Accuracy: c20 µm / ±.001"
  • Measuring Force: = 1.5 N
  • Scale: Capacitance type Absolute linear encoder
  • Parallelism: = 5
  • Maximum Response Speed: Unlimited
  • Contact Point: M 2.5 x 0.45 mm (ISO/JIS type)
  • Power Supply: 1 battery SR-44
  • Battery Life: 7000 hours
  • Zero/ABS: Yes
  • Digimatic Data Output: Yes
  • On/Off: Yes
  • Lock Function: Yes
  • Preset: Yes
  • Counting Direction Switchable: Yes

Caulfield Industrial stock a wide range of Mitutoyo measuring instruments and provide Next Day Delivery across Ireland on all stocked items.
