METCAL BVX-250-KIT Fume Extraction Unit

€960.00 Ex. VAT

New

Code E07329

Add to Basket

Product Details

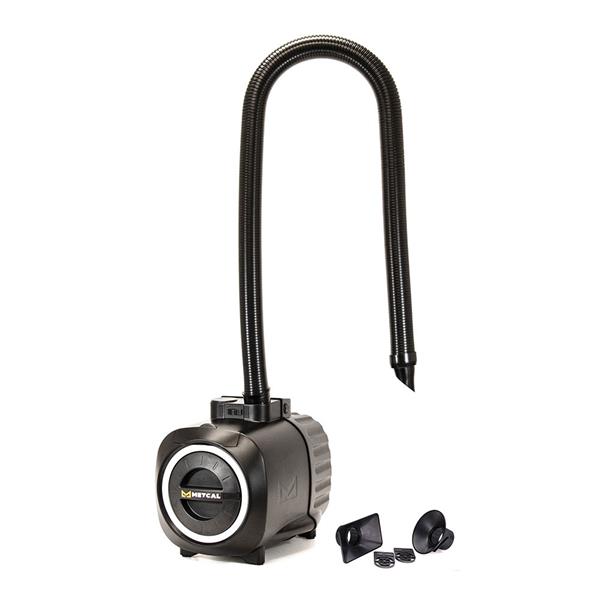

METCAL BVX-250-KIT Fume Extraction Unit

The Metcal BVX-250 Fume Extraction System is a portable, two-station filtration system for the removal of workplace fumes, smoke, dust, and vapors.

Fume Extraction Unit, HEPA 13/Gas Filter, Pre-Filter, BVX-NOZC, BVX-NOZR, BVX-ARML

The BVX-250 is a portable, two-station filtration system for removing workplace fumes, smoke, dust, and vapors. With 99.97% efficiency HEPA 13 filtration, 30-second filter changes, and twice the suction power of previous models.

* Compatible with previous BVX & Omniflex arms and hoses. Arms/hoses are sold separately.

Features

• Color LED status ring

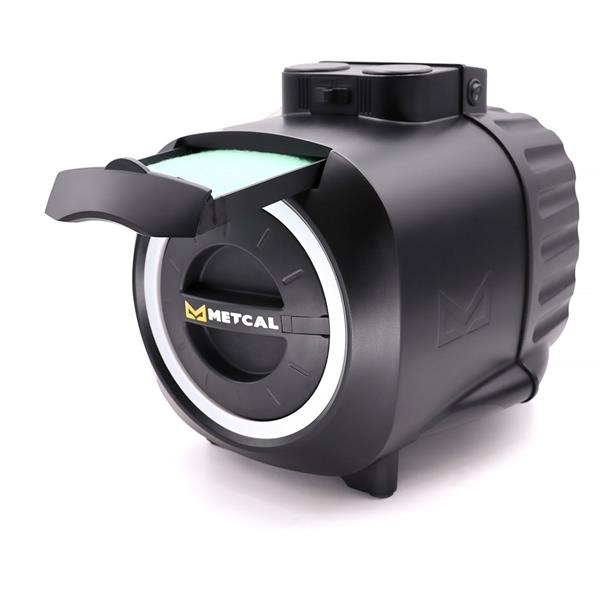

• Change filters without removing the hoses
• Removable 360⁰ rotating air diverter - adjust the exhaust for operator comfort
• Communicates with Metcal CV and GT soldering systems for filter change notifications
• Light-weight, portable, and quiet design
• HEPA 13 Efficiency at 99.97%
• Optional Deep-Bed Gas Filter
• Connects to 50mm (2”) or 63mm (2.5”) hoses or exhaust arms Three airflow options (High, Medium, & Low)
• Powerful airflow and suction capacity
• On/Off switch with “Soft-Start” feature
•  ESD-safe housing
• Low-profile, compact unit fits under most work benches

Specifications

• Max. airflow, free blowing: 297 m3/h (175 cfm)
• Flow rate: 2 x 75 m3/h (45 cfm)
• Static pressure: 1743 Pa (7” WC)
• Noise level (approx.): < 55 dBA (at medium setting)
• Voltage: 100 – 240 VAC, 1 phase
• Frequency: 50/60 Hz
• Power: 150 Watts
• Safety compliance: UL & CSA, UKCA, KC, PSE, NOM, CE (ISO-14644), TUV
• Dimensions W/D/H: 268 x 400 x 320mm

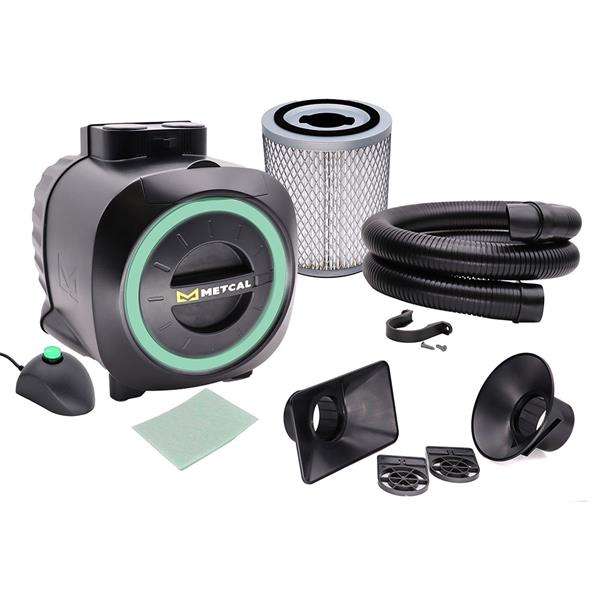

Kit Contains

• BVX-250 Fume Extractor
• HEPA 13/Gas Filter
• Pre-Filter
• BVX-NOZR rectangular nozzle
• BVX-NOZC circular nozzle
• BVX-ARML arm/hose.
