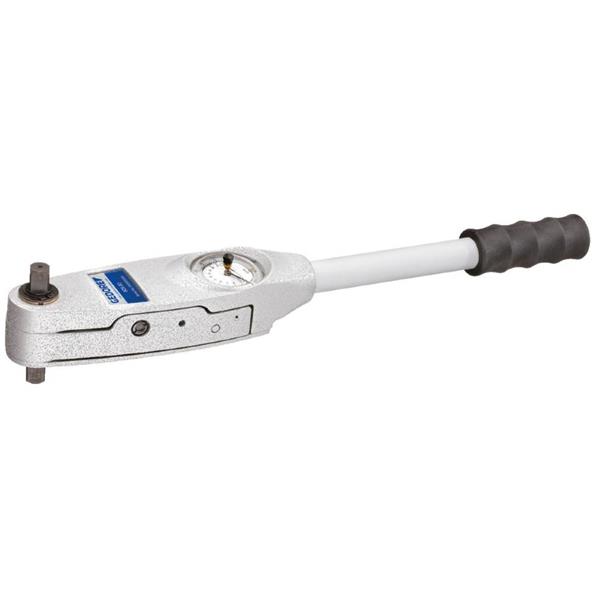

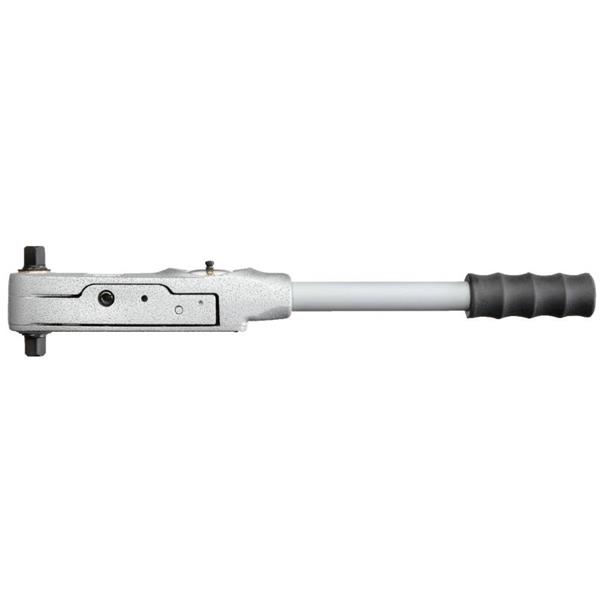

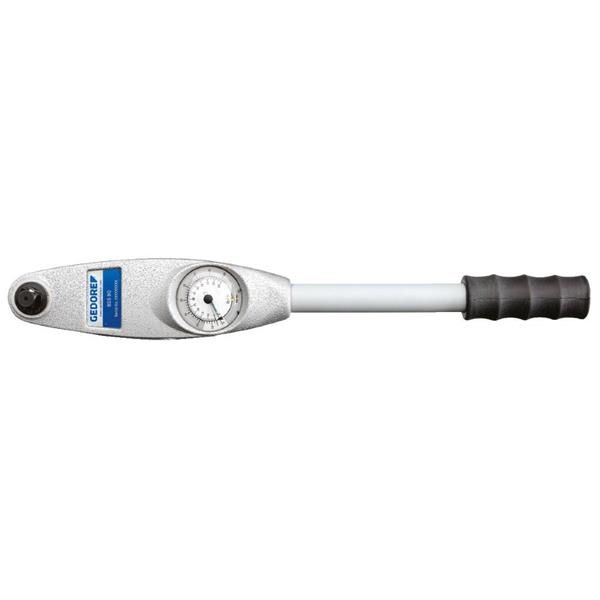

GEDORE 7651710 BDS 80 E Torque wrench type 83 BDS 1/2" 16-80 Nm

€459.80 Ex. VAT

Code	Range	Drive Size	Type No.	Quantity	Price Ex. VAT
012677	16-80 N.m	1/2"	BDS 80E		€459.80

Add to Basket

Product Details

Application: controlled tightening as well as control of "movement torques", application in many (industrial) sectors
Double scale. The dial offers effective measurement in metric and imperial torque units in both directions, providing flexibility and minimizing tool investment.
Design: indicating torque wrench with dial and drag indicator.
No risk of tool damage. Overload protection system. Recessed dial minimizes dial damage.
Versatile use. Use for maintenance, repair, assembly and quality control.
For controlled tightening and torque measurements
Accuracy: +/- 4% tolerance of the set scale value
Design according to DIN EN ISO 6789, traceable to national standards
With double scale in Nm and lbf-in resp. lbf-ft on two-colored, easily readable scale
Built-in overload protection - mechanical stop at max. 25 % overload of maximum value, housing made of light, robust special aluminum construction - silver gray painted, black, non-slip rubber handle
Models Nohne ADS 4 to Nohne ADS 40: complies with EPA (Electrostatic Protected Area), for use in electrostatically sensitive applications
Test certificate according to DIN EN ISO 6789
Scope of delivery: View torque wrench
Battery (only models with option: Signal)
Test certificate according to DIN EN ISO 6789
Delivery in sturdy, black plastic box (no ADS 4 t / m BDS 80), further in sturdy cardboard packaging (no BDS 100 t / m EDS)

Specifications

Overall length: 435 mm
Overall height: 86 mm
Net weight: 2.024 kg
1000 V insulated: No
VDE certified: No
Material: Aluminum housing, tubular steel rod
Target groups: Automotive, Electronics industry, Industry, Construction and commercial vehicles, Military, Mechanical engineering, Service
Drive Square: 1/2 Inch
Drive Square: 12.5 mm
Scope: Production, Quality control, Maintenance and repair
Torque (max.): 80 Nm
Drive type/drive: Double square
Torque (min.): 16 Nm
Precision +/-: +/- 4%
Tightening direction: Left and right
Fixed setting: No
Test certificate: DIN EN ISO 6789-2:2017
Scale division: 2
Torque range (min./max.): 16-80 Nm
EPA/ESD version: No
Graduation scale: 2 Nm
Tightening torque (max.): 60 lbf-ft.
Measuring accuracy of tightening torque: ± 4% tolerance of displayed value
Graphic display: No
Analysis software: No
Tightening torque (min.): 12 lbf-ft
Tightening range (min/max): 12-60 lbf-ft
Scale: 1 lbf-ft
