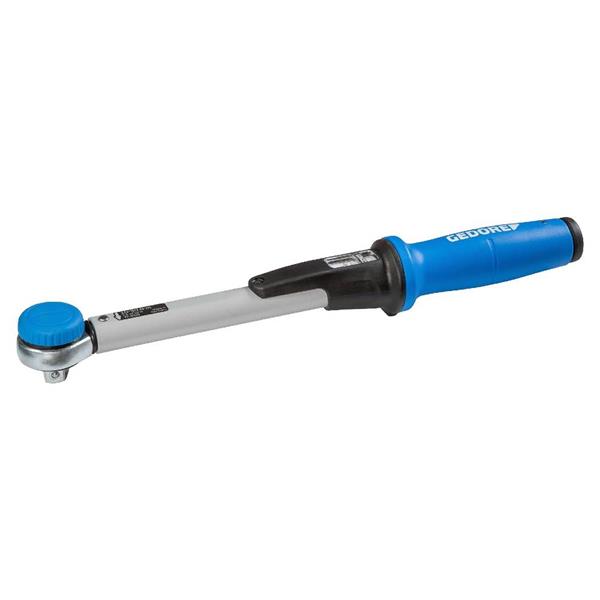

GEDORE 3288242 Torcofix K 3/8" Drive Torque Wrench, 10-50 N.m

€279.09 Ex. VAT

Code P-E10242

Add to Basket

Product Details

GEDORE 3288242 Torcofix K 3/8" Drive Torque Wrench, 10-50 N.m

Features:

• Classified as per DIN EN ISO 6789-2:2017 Type II Class A; adjusted to a maximum permissible +/-3 % deviation and thus with a greater precision than the standard-stipulated +/-4 %
• Incl. traceable test certificate (DIN EN ISO 6789-2:2017)
• For controlled right- and left-hand tightening (square socket for direction change)
• 3/8" mushroom head socket square with ball lock
• Robust, matt powder-coated tubular steel construction, with galvanized ratchet and high-quality plastic parts • New ergonomic handle, shaped according to the natural grip position of the hand
• Clearly recognisable and tactile hand centring aid and calibration aid in the middle of the handle
• Double scale Nm / lbf·ft and vernier are protected from abrasion and contamination by an enlarged viewing window
• With vernier scale for Nm main scale for setting intermediate scale values; lbf-ft setting only via main scale
• Vertical alignment of the scale, torque adjustment therefore suitable for left and right handers
• Scale line positioned directly above the scale prevents reading errors (parallax errors)
• Unit labeling integrated in the scale frame and also protected by viewing windows
• The precise release mechanism generates a distinct tactile and audible release signal when the set torque value is reached
• incl. roll away protection, prevents rolling away when the tool is put down

Specifications:

• Torque range: 10–50 Nm (7.5–37 lbf·ft)
• Drive size: 3/8" square (10 mm)
• Overall length: 303 mm
• Accuracy: ±3%
• Scale graduation: 2.5 Nm
• Vernier: 0.25 Nm
• Drive/head: Mushroom-head ratchet
• Teeth: 36
• Return angle: 10°
• Tightening direction: Clockwise & counter-clockwise
• Calibration length: 230.5 mm
• Material: Tubular steel construction with high-quality plastic components
• Head dimensions: 35 mm wide × 25.3 mm high
• Weight: Approx. 0.42 kg
• Standard: DIN 3120 / ISO 1174
