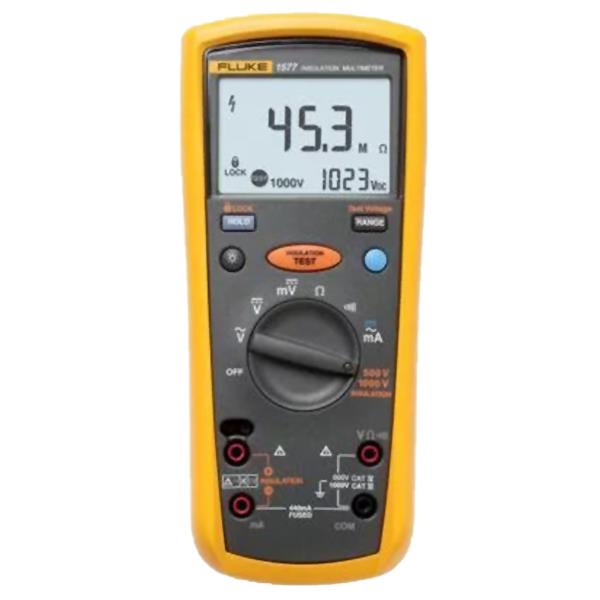

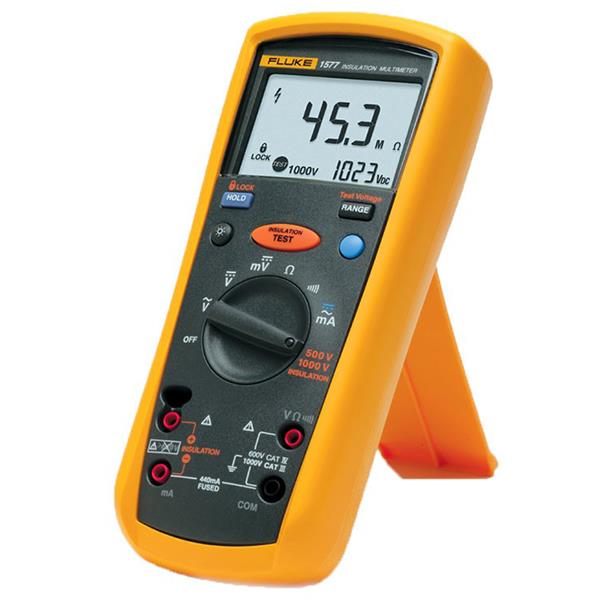

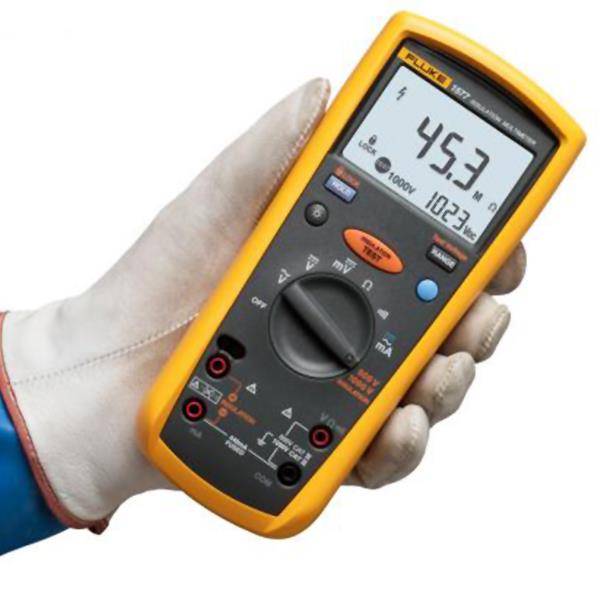

Fluke 1577 Insulation Multimeter

FLUKE 1577 Insulation Multimeter

€886.00 Ex. VAT

Code F10063

Add to Basket

Product Details

Fluke 1577 Insulation Multimeter

The Fluke 1577 Insulation Multimeters combine a digital insulation tester with a full-featured, true RMS digital multimeter in a single, compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance. Whether you work on motors, generators, cables, or switch gear, the Fluke 1577 Insulation Multimeters are ideally suited to help you with your tasks and at a cost that is far less than buying the two products.

Features:

Large display with backlight
Live circuit detection prevents insulation test if voltage greater than 30 volt is detected for added user protection
Auto-discharge of capacitive voltage
Auto power off
CAT III 1000 V, CAT IV 600 V measurement category
Accepts optional Fluke TPAK magnetic hanging system
Rugged, utility hard case allows you to bring everything you need for the job

Specifications

DC Voltage	Maximum Voltage: 1000 volt Accuracy: ±(0.2 percent + 2) Maximum Resolution: 0.001 volt
AC Voltage	Maximum Voltage: 1000 volt Accuracy: ±(2 percent + 3) Maximum Resolution: 0.1 mV
DC Current	Maximum Amps: 400 mA Accuracy: ±(1.0 percent + 2) Maximum Resolution: 0.01 mA
AC Current	Maximum Amps: 400 mA Accuracy: ±(2.0 percent + 2) Resolution: 0.01 mA
Resistance	Maximum Resistance: 50 MO Accuracy: ±(1.2 percent + 2) Maximum Resolution: 0.1 O
Insulation Test
Minimum Test Current at 1 kO/volt	1 mA
Test Voltage	500 volt, 1000 volt

Delivery Info

Please allow 1 - 2 Business Days for Delivery

Free delivery on all orders over €49.99 + VAT, Click here for more information

Returns Policy

Easy Returns via Store, Post or Courier

Caulfield Industrial are happy to accept items returned to us within 28 days of purchase and in this case we offer you an exchange or a full refund once we receive the items and process them in our warehouse. Any returns which fall outside this 28 day time period may be considered on a case-by-case basis and is at the discretion of Caulfields and may be refunded as a credit against a future purchase. All items must be returned to Caulfields in the same condition in which they were shipped and in a saleable condition. Caulfield Industrial reserves the right to refuse a return if it is determined that the item has been used or worn and then returned for any reason other than being ‘faulty’.

Downloads

1577.PDF (2 MB)
