Fluke 117/323 Electrician's Multimeter Combo Kit

FLUKE 117/323 Electrician's Multimeter Combo Kit

€471.00 Ex. VAT

Code D11023

Add to Basket

Product Details

Fluke 117/323 Electrician’s Multimeter Combo Kit

This combo kit pairs the Fluke 117 DMM with a Fluke 323 clamp meter for productive and effective troubleshooting in one total solution, including the C115 durable soft carrying case for protection and easy meter transportation.

117 Digital Multimeter Features:

VoltAlert technology for non-contact voltage detection
AutoVolt automatic AC/DC voltage selection
Low Input Impedance: Helps prevent false readings due to ghost voltage
Large white LED backlight to work in poorly lit areas
True-rms for accurate measurements on non-linear loads
Measures 10 Amps (20 Amps overload for 30 seconds)
Resistance, continuity, frequency, and capacitance
Minimum, Maximum and Average to record signal fluctuations
Compact ergonomic design for one-handed operation
CAT III 600 volt safety rated

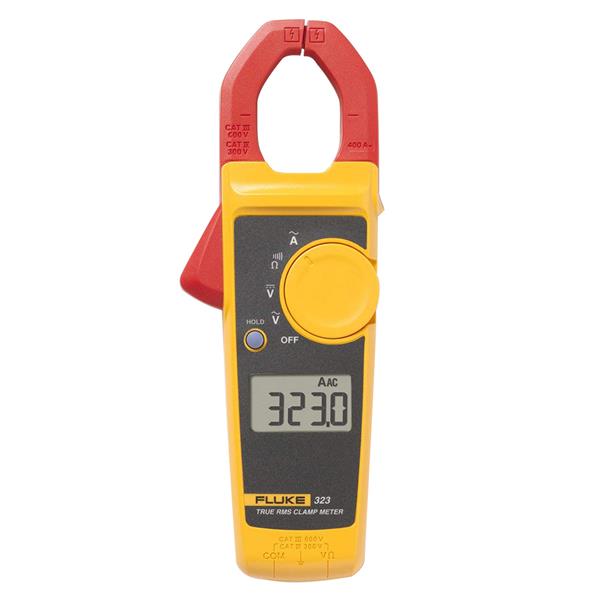

323 Clamp Meter Features:

Slim and ergonomic design
400 Amps AC current measurement
600 volt AC and DC voltage measurement
True-rms ac voltage and current for accurate measurements on non-linear signals
CAT IV 300 volt/CAT III 600 volt safety rating

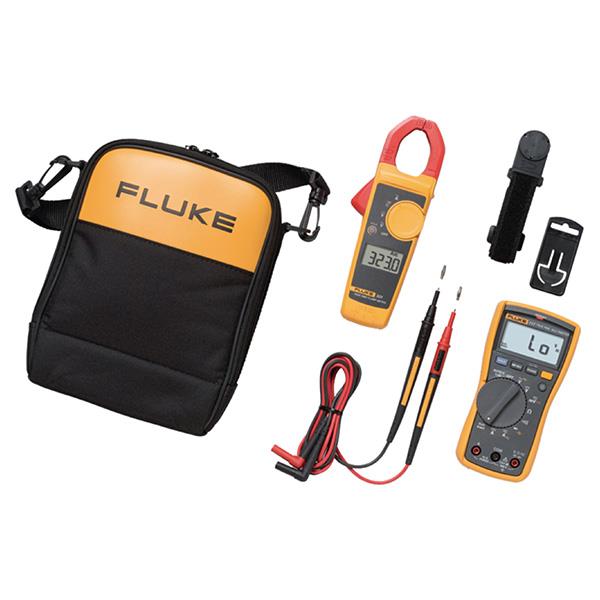

Includes:

Fluke 117 Digital Multimeter
Fluke 323 True-RMS Clamp Meter
Test Lead Set
Magnetic Hanging Strap
Carry Case

Delivery Info

Please allow 1 - 2 Business Days for Delivery

Free delivery on all orders over €49.99 + VAT, Click here for more information

Returns Policy

Easy Returns via Store, Post or Courier

Back to results page

Click to view complete product details

Description

117 Digital Multimeter Specifications:

Battery Type	Alkaline
Battery Life	400 hours
Maximum Voltage Between Any Terminal and Earth Ground	600 volt
Operating Temperature	-10 to 50 degree Celsius
Storage Temperature	-40 to 60 degree Celsius
Surge Protection	6 kV peak per IEC 61010-1 600 VCAT III, Pollution Degree 2
Fuse for A input	11 Amps, 1000 volt Fast Fuse (Fluke PN 803293)
Display	Digital: 6000 counts, updates 4 per seconds
Bar Graph	33 segments, updates 32 per seconds
DC Millivolts	Range/Resolution	600/0.1 mV
DC Millivolts	Accuracy	±([percent of reading] + [counts]): 0.5 percent + 2
DC Volts	Range/Resolution	6.000/0.001 volt 60.00/0.01 V 600.00/0.1 volt
DC Volts	Accuracy	±([percent of reading] + [counts]): 0.5 percent + 2
Auto Volts	Range/Resolution	600.0/0.1 volt
Auto Volts	Accuracy	2.0percent + 3 (DC, 45 Hz to 500 Hz) 4.0 percent + 3 (500 Hz to 1 kHz)
AC Millivolts True-RMS	Range/Resolution	600.0/0.1 mV
AC Millivolts True-RMS	Accuracy	1.0 percent + 3 (DC, 45 Hz to 500 Hz) 2.0 percent + 3 (500 Hz to 1 kHz)
AC Volts True-RMS	Range/Resolution	6.000/ 0.001 volt 60.00/0.01 volt 600.0/ 0.1 volt
AC Volts True-RMS	Accuracy	1.0 percent + 3 (DC, 45 Hz to 500 Hz) 2.0 percent + 3 (500 Hz to 1 kHz)
Continuity	Range/Resolution	600/1 O
Continuity	Accuracy	Beeper on < 20 O, off > 250 O; detects opens or shorts of 500 µs or longer.
Ohms	Range/Resolution	600.0/0.1 O 6.000/0.001 kO 60.00 /0.01 kO 600.0/0.1 kO 6.000/0.001 MO
	Accuracy	0.9 percent + 1
	Range/Resolution	40.00/0.01 MO
	Accuracy	5 percent + 2
Diode Test	Range/Resolution	2.00/0.001 volt
Diode Test	Accuracy	0.9 percent + 2
Capacitance	Range/Resolution	1000/ 1 nF 10.00/0.01 µF 100.0/0.1 µF 9999/1 µF 100 µF to 1000 µF
	Accuracy	1.9 percent + 2
	Range/Resolution	> 1000 µF
	Accuracy	5 percent + 20 percent
Lo-Z Capacitance	Range	1 nF to 500 µF
Lo-Z Capacitance	Accuracy	10 percent + 2 Typical
AC aAps True-RMS (45 Hz to 500 Hz)	Range/Resolution	6.000/0.1 Amps 10.00/0.01 Amps
AC aAps True-RMS (45 Hz to 500 Hz)	Accuracy	1.5 percent + 3 20 Amps continuous overload for 30 seconds maximum
DC Amps	Range/Resolution	6.000/ 0.1a Amps, 10.00/0.01 Amps
DC Amps	Accuracy	1.0 percent + 3 20 Amps continuous overload for 30 seconds maximum
Frequency (Volt or Amps Input)²	Range/Resolution	99.99/0.01 Hz 999.99/0.1 Hz 9.999/0.001 Hz 50.00/0.01 Hz
Frequency (Volt or Amps Input)²	Accuracy	0.1 percent + 2
Size	167 x 84 x 46 mm
Weight	0.55 kg

323 Clamp Meter Specifications:

AC Current	Range	400 Amps
AC Current	Accuracy	2 percent ±5 digits (45 Hz to 65 Hz) 2.5 percent ±5 digits (65 Hz to 400 Hz)
AC Voltage	Range	600 volt
AC Voltage	Accuracy	1.5 percent ±5 digits
DC Voltage	Range	600 volt
DC Voltage	Accuracy	1.0 percent ±5 digits
Resistance	Range/Resolution	400/4000 O
Resistance	Accuracy	1.0 percent ±5 digits
Continuity	= 70 O
AC Response	True-RMS
Data Hold	Yes
Maximum Wire Diameter	30 mm
Size	207 x 75 x 34
Weight	0.265 kg
