FLUKE 114 True-RMS Electrical Digital Multimeter

€249.00 Ex. VAT

Code C11001

Add to Basket

Product Details

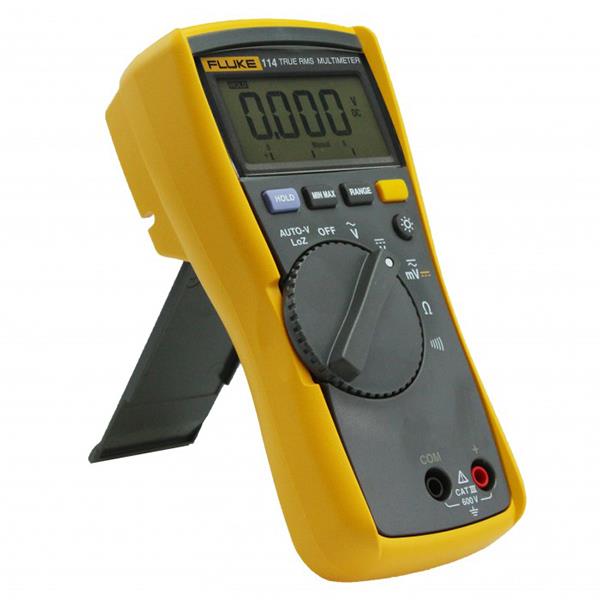

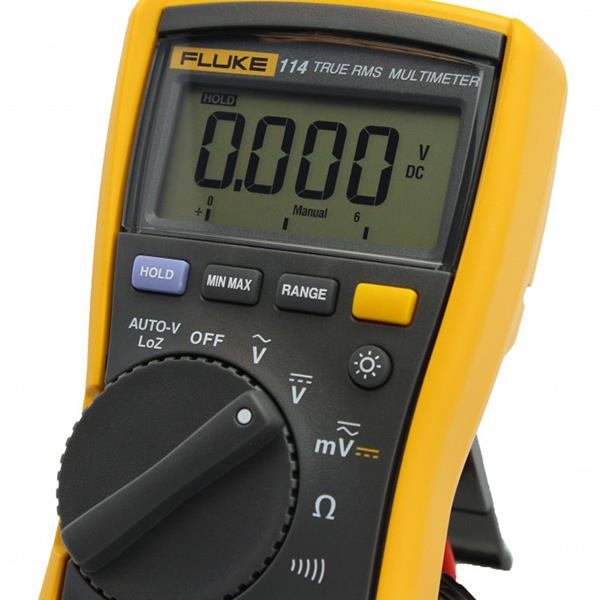

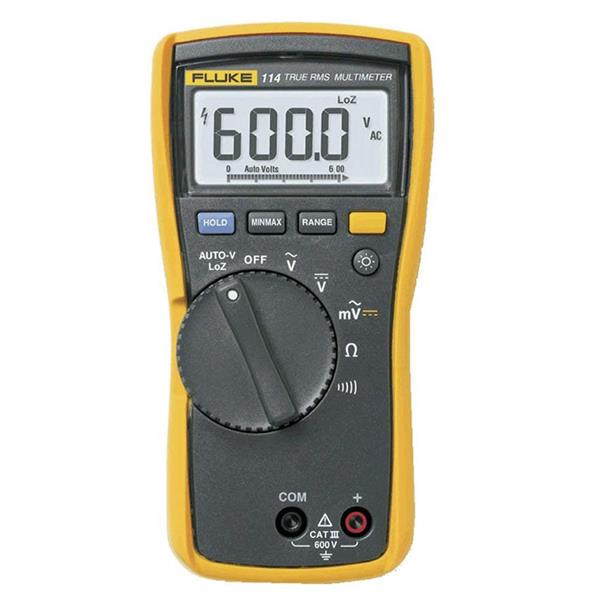

Fluke 114 True-RMS Electrical Digital Multimeter

Designed for easy one-handed operation, the compact Fluke 114 True-RMS digital multimeter is the perfect troubleshooting tool for go/no go testing. Its Auto volt capability automatically switches to measure AC or DC voltage, whichever is present. And you can use the LoZ function to identify so-called ghost voltage and prevent false readings. The Fluke 114 displays True-RMS voltage and current readings with 6000 count resolution and tests frequency, continuity and resistance. A large white LED backlight aids to work in poorly lit areas. And its easy-open battery access door makes battery changes easy.

Features:

Ideal Digital Multimeter for "go/no-go" testing
Features AutoVolt automatic AC/DC voltage selection
Includes low input impedance to help prevent false readings due to ghost voltage
Presents a large white LED backlight for working in poorly lit areas
Measures resistance, continuity, frequency, and capacitance
Provides Minimum, Maximum and Average with elapsed time to record signal fluctuations

Includes:

9-volt Batteries
Holster
Test Leads
User Manual

Get the quality fluke digital multimeter that you deserve at an affordable price from Caulfield Industrial.

Delivery Info

Please allow 1 - 2 Business Days for Delivery

Free delivery on all orders over €49.99 + VAT, Click here for more information

Returns Policy

Easy Returns via Store, Post or Courier

Downloads

114.PDF (818 KB)

Back to results page

Click to view complete product details

Description

Specifications:

Battery Type	Alkaline
Battery Life	400 hours
Maximum Voltage between any Terminal and Earth Ground	600 volt
Surge Protection	6 kV peak per IEC 61010-1 600 VCAT III, Pollution Degree 2
Display	Digital: 6000 counts, updates 4 per seconds
Bar Graph	33 segments, updates 32 per seconds
Operating Temperature	-10 to 50 degree Celsius
Storage Temperature	-40 to 60 degree Celsius
DC Millivolts	Range/Resolution	600/0.1 mV
DC Millivolts	Accuracy	± ([percent of reading] + [counts]): 0.5 percent + 2
DC Volts	Range/Resolution	6.000/0.001 volt 60/0.01 volt 600/0.1 volt
DC Volts	Accuracy	± ([percent of reading] + [counts]): 0.5 percent + 2
Auto Volts	Range/Resolution	600/0.1 volt
Auto Volts	Accuracy	2.0 percent + 3 (DC, 45 Hz to 500 Hz) 4.0 percent + 3 (500 Hz to 1 kHz)
AC Millivolts True-RMS	Range/Resolution	600/0.1 mV
AC Millivolts True-RMS	Accuracy	1.0 percent + 3 (DC, 45 Hz to 500 Hz) 2 percent + 3 (500 Hz to 1 kHz)
AC Volts True-RMS	Range/Resolution	6/0.001 volt 60/0.01 volt 600/0.1 volt
AC Volts True-RMS	Accuracy	1.0 percent + 3 (DC, 45 Hz to 500 Hz) 2 percent + 3 (500 Hz to 1 kHz)
Continuity	Range/Resolution	600/1 O
Continuity	Accuracy	Beeper on < 20 O, off > 250 O detects opens or shorts of 500 µs or longer.
Ohms	Range/Resolution	600/0.1 O 6.000/0.001 kO 60.00/0.01 kO 600.0/0.1 kO 6.000/0.001 MO
	Accuracy	0.9 percent + 1
	Range/Resolution	40.00/0.01 MO
	Accuracy	5 percent + 2
Size	167 x 84 x 46 mm
Weight	0.55 kg
