FESTOOL 578942 OF 1400 EQ-PLUS Router, 240V

€822.88 Ex. VAT

New

Code H15811

Product Details

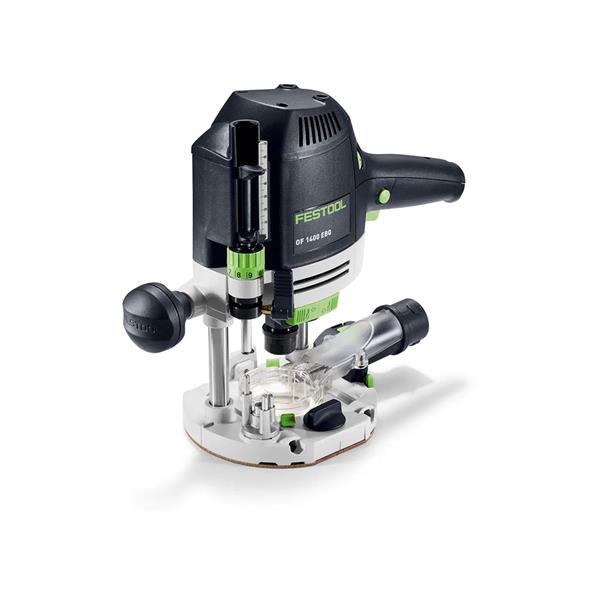

FESTOOL 578942 OF 1400 EQ-PLUS Router, 240V

Power and ease of operation in perfect harmony.

The OF 1400 is a handy and versatile router: weighing just 4.5 kg and with a 70 mm routing stroke, it is perfect for countersinking fittings and for precise work with routing templates. The LED light ring in the extraction bonnet ensures optimum visibility of your workpiece. Thanks to clever details, extensive equipment and versatile accessories, you can master almost any routing task - precisely and efficiently.

Features

• Stable: Torsion-resistant construction with guide column clamped on both sides for optimum routing results.
• Practical: Tool-free change of the copying rings and travelling soles for different applications.
• Convenient and quick cutter change: thanks to the spindle stop with ratchet principle, you don't need to move the open-end spanner.

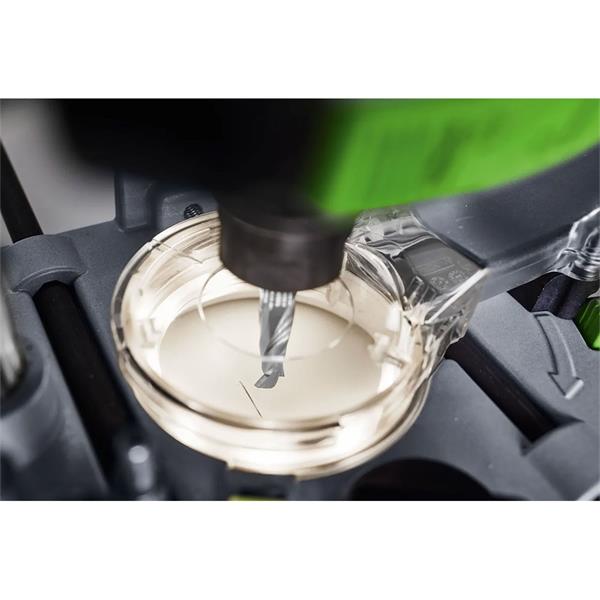

• Optimum visibility: thanks to the extraction bonnet with integrated LED light ring.
• Precise: Simple and 1/10 mm accurate fine adjustment of the milling depth - with a large adjustment range of 20 mm.
• Clean: Up to 99 % extraction with chip catcher and extraction bonnet when routing edges.
• Safe: Quick brake and MMC Electronic for material-specific work and speed regulation.

Main Applications

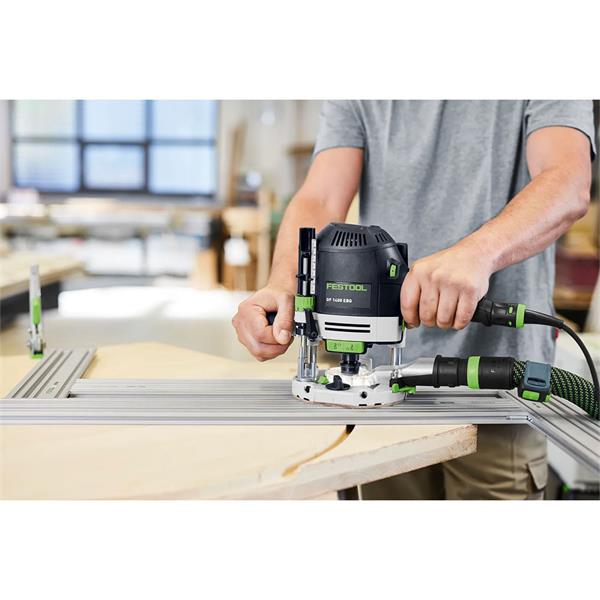

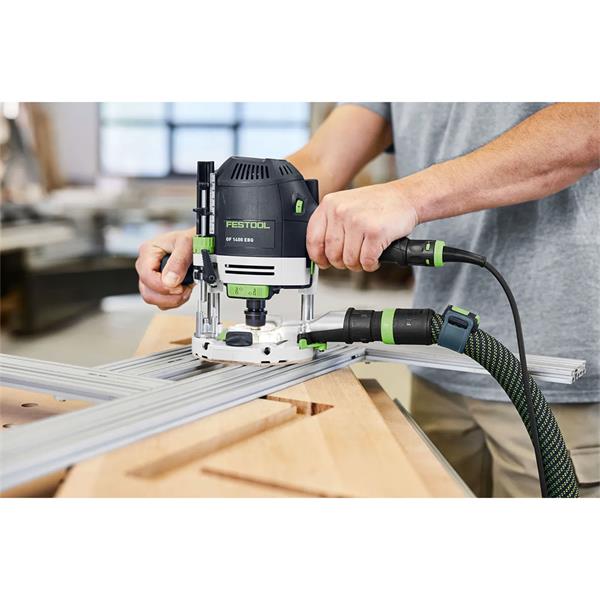

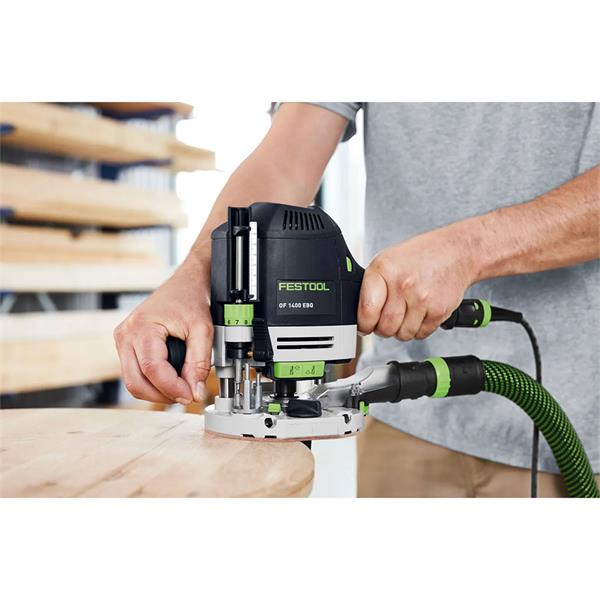

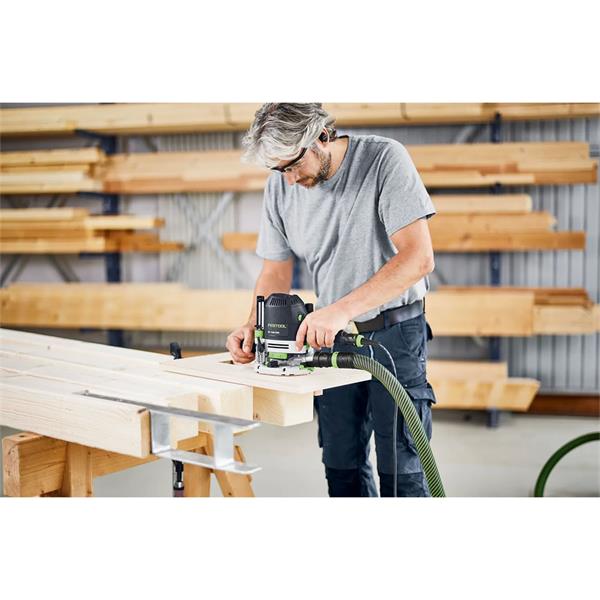

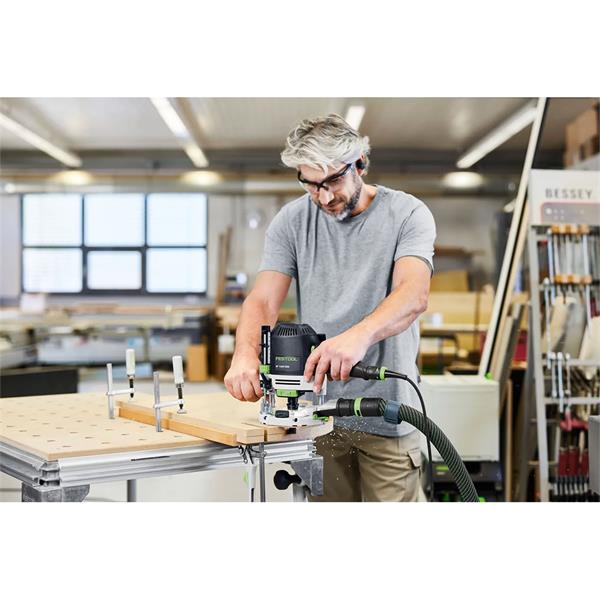

• Rounding, chamfering, rebating and profiling edges
• Routing circles and cut-outs with the multi-routing template
• Grooving rear panels or recessing dovetail batons with the guide system
• Routing with the routing aid to fit Schallex, draft excluders or espagnolettes
• Routing mineral material (max. cutter Ø 45 mm)

Specifications

• Power consumption: 1 400 W
• Idle engine speed: 10 000 - 22 500 min?¹
• Clamp diameter: 6 - 12.7 mm
• Routing stroke: 70.00 mm
• Routing depth fine adjustment range: 8.00 mm
• Bench opening: 63.00 mm
• Dust extraction connection diameter: 27/36 mm
• Cable length: 4.00 m
• Product weight without accessories: 4.60 kg
• Transport weight incl. accessories: 9.30 kg
• Drive type: Mains
• Routing: Uncertainty (vibration) K: 1.50 m/s²
• Routing: Uncertainty (noise) K1.50 dB
• Routing: Total vibration average, Ah: 2.50 m/s²
• Routing: Standards series EN62841-2-17
• Routing: A-weighted sound pressure level, LpA: 98.00 dB(A)
• Routing: A-weighted sound power level, LWA; 106.00 dB(A)

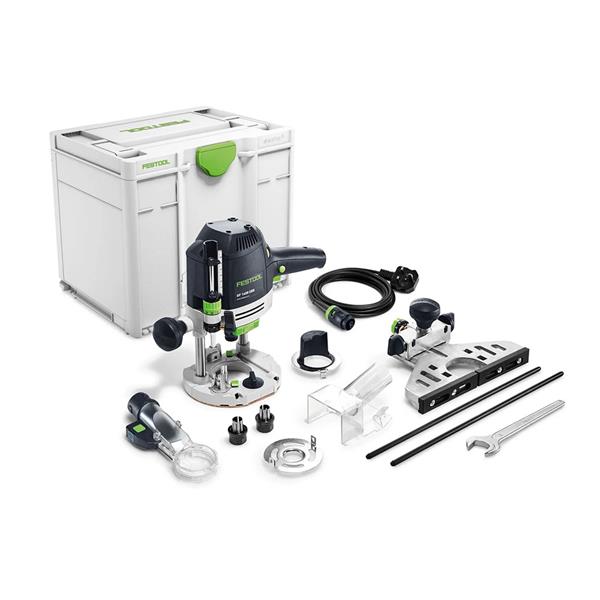

Includes

• 1 x 578683 LM-OF 1400 Extraction bonnet with light module
• 1 x 494465 SZ-D 12,7/OF 1400/2000/2200 Collet
• 1 x 492185 KR-D 30,0/OF 1400 Copying ring
• 1 x 492732 KSF-OF 1400 Chip deflector
• 1 x 203924 H05 RN-F-4 plug it-cable
• 1 x 494463 SZ-D 6,35/OF 1400/2000/2200 Collet
• 1 x 492636 SA-OF 1400 Parallel side fence
• 1 x extraction hod, top
• 1 x open ended spanner WAF24
• 1 x 204844 SYS3 M 337 Systainer³ Storage Box
