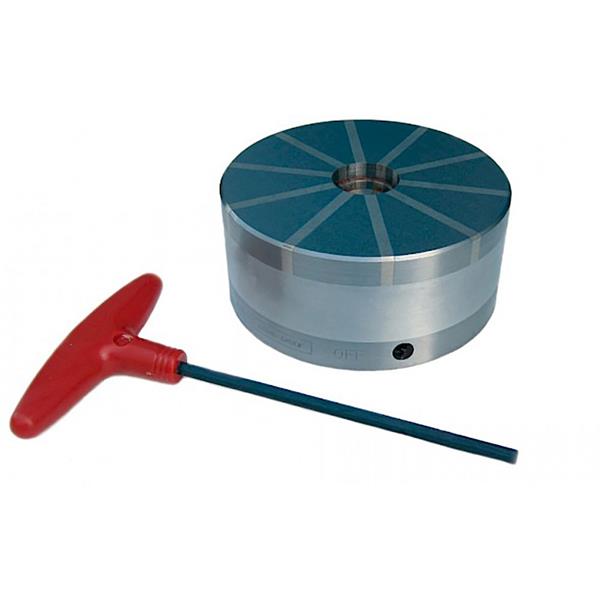

ECLIPSE MAGNETIC Radial Pole Premier Chuck

€1,095.70 - €4,204.08 Inc. VAT

Code	Outside Dia.	Thru' Bore	Height	Type No.	Price Inc. VAT
A20211	100	N/A	53	NR100C	€1,095.70
A20212	150	36	63	NR150C	€1,778.09
A20213	225	50	70	NR225C	€2,692.96
A20214	300	62	80	NR300C	€4,204.08

Add to Basket

Product Details

ECLIPSE MAGNETIC Radial Pole Premier Chuck

Quick, precise set up for grinding and turning processes

Ideal for a wide range of precision grinding and medium/heavy turning applications, the radial pole is the best option for ring type applications such as inspection and precision grinding.

The radial pole is the best option for heavy turning on ring type components. The design concentrates the entire magnetism from the chuck to the point in contact with the workpiece,
ensuring excellent hold.

The workpiece on this type of chuck should not cover more than 50% of the pole area.

Features

Simple on-off switching - removable operating handle
Variable hold - allows adjustment of position before full hold is engaged
Failsafe permanent magnetic technology
Thick all metal top plate - high accuracy and long lifespan
High corrosion resistance - resists damage from coolants
Through bore - allows through flushing of coolant
Can be rotated at up to 3000 rpm
